Random Gabor experiment

In this quick experiment we will be training an MNIST classifier using RandomGabor layers.

Library importing

import numpy as np
import matplotlib.pyplot as plt
from einops import rearrange, repeat

import tensorflow as tf
from tensorflow.keras import layers
from tensorflow.keras.datasets import mnist

from flayers.layers import RandomGabor

Data loading

We will be using MNIST for a simple and quick test.

(X_train, Y_train), (X_test, Y_test) = mnist.load_data()

X_train = repeat(X_train, "b h w ->  b h w c", c=1)/255.0
X_test = repeat(X_test, "b h w ->  b h w c", c=1)/255.0

X_train.shape, Y_train.shape, X_test.shape, Y_test.shape

((60000, 28, 28, 1), (60000,), (10000, 28, 28, 1), (10000,))

Definition of simple model

model = tf.keras.Sequential([
    RandomGabor(n_gabors=4, size=20, input_shape=(28,28,1)),
    # layers.Conv2D(32, 3, input_shape=(28,28,1)),
    layers.MaxPool2D(2),
    layers.GlobalAveragePooling2D(),
    layers.Dense(10, activation="softmax")
])
model.compile(optimizer="adam",
              loss="sparse_categorical_crossentropy",
              metrics=["accuracy"])
model.summary()

2022-09-18 23:02:18.375631: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1510] Created device /job:localhost/replica:0/task:0/device:GPU:0 with 5290 MB memory:  -> device: 0, name: NVIDIA GeForce GTX TITAN Black, pci bus id: 0000:83:00.0, compute capability: 3.5
2022-09-18 23:02:21.015730: I tensorflow/compiler/mlir/mlir_graph_optimization_pass.cc:185] None of the MLIR Optimization Passes are enabled (registered 2)
2022-09-18 23:02:21.299468: I tensorflow/core/util/cuda_solvers.cc:180] Creating CudaSolver handles for stream 0x5595438552e0

Model: "sequential"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
random_gabor (RandomGabor)   (None, 28, 28, 4)         1626
_________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 14, 14, 4)         0
_________________________________________________________________
global_average_pooling2d (Gl (None, 4)                 0
_________________________________________________________________
dense (Dense)                (None, 10)                50
=================================================================
Total params: 1,676
Trainable params: 76
Non-trainable params: 1,600
_________________________________________________________________

We can show the initial Gabor filters:

model.layers[0].show_filters()

history = model.fit(X_train, Y_train, batch_size=128, epochs=1, validation_split=0.2)

2022-09-18 23:02:30.164449: I tensorflow/stream_executor/cuda/cuda_dnn.cc:369] Loaded cuDNN version 8100
2022-09-18 23:02:30.665826: I tensorflow/core/platform/default/subprocess.cc:304] Start cannot spawn child process: No such file or directory

375/375 [==============================] - 21s 38ms/step - loss: 2.3070 - accuracy: 0.1080 - val_loss: 2.2878 - val_accuracy: 0.1509

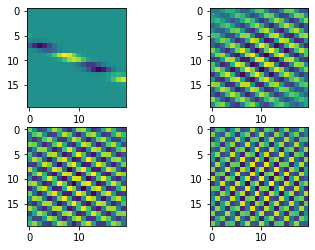

We can visualize the gabor filters after the training process:

model.layers[0].show_filters()
