Functional layers

JaX/Flax implementation of functional layers.

Base layer

First we’ll define a base class that will be used by every other functional layer.

class BaseFunctional(nn.Module):
    """Base functional layer."""
    features: int
    kernel_size: Union[int, Sequence[int]]
    strides: int = 1
    padding: str = "SAME"
    feature_group_count: int = 1
    kernel_init: Callable = nn.initializers.lecun_normal()
    bias_init: Callable = nn.initializers.zeros_init()
    xmean: float = 0.5
    ymean: float = 0.5

    @nn.compact
    def __call__(self,
                 inputs,
                 ):
        sigma = self.param("sigma",
                           nn.initializers.uniform(scale=1),
                           (self.features*inputs.shape[-1],))

        # x, y = jnp.meshgrid(jnp.linspace(0,1,num=self.kernel_size), jnp.linspace(0,1,num=self.kernel_size))
        # kernel = jax.vmap(self.gaussian, in_axes=(None,None,None,None,0,None), out_axes=-1)(x, y, self.xmean, self.ymean, sigma, 1)
        # kernel = jnp.reshape(kernel, newshape=(self.kernel_size, self.kernel_size, inputs.shape[-1], self.features))
        kernel = self.generate_kernel()

        ## Add the batch dim if the input is a single element
        if jnp.ndim(inputs) < 4: inputs = inputs[None,:]
        outputs = lax.conv(jnp.transpose(inputs,[0,3,1,2]),    # lhs = NCHW image tensor
               jnp.transpose(kernel,[3,2,0,1]), # rhs = OIHW conv kernel tensor
               (self.strides, self.strides),
               self.padding)
        return outputs

    @staticmethod
    def generate_function(x, y, xmean, ymean, sigma, A=1):
        return A*jnp.exp(-((x-xmean)**2 + (y-ymean)**2)/(2*sigma**2))

    def return_kernel(self, params):
        x, y = jnp.meshgrid(jnp.linspace(0,1,num=self.kernel_size), jnp.linspace(0,1,num=self.kernel_size))
        kernel = jax.vmap(self.gaussian, in_axes=(None,None,None,None,0,None), out_axes=-1)(x, y, self.xmean, self.ymean, params["params"]["sigma"], 1)
        kernel = jnp.reshape(kernel, newshape=(self.kernel_size, self.kernel_size, 3, self.features))
        return kernel

Gaussian layer

---

source

GaussianLayer

 GaussianLayer (features:int, kernel_size:Union[int,Sequence[int]],
                strides:int=1, padding:str='SAME',
                feature_group_count:int=1, kernel_init:Callable=<function
                init>, bias_init:Callable=<function zeros>,
                use_bias:bool=False, xmean:float=0.5, ymean:float=0.5,
                fs:float=1, normalize_prob:bool=True,
                normalize_energy:bool=False, parent:Union[Type[flax.linen.
                module.Module],Type[flax.core.scope.Scope],Type[flax.linen
                .module._Sentinel],NoneType]=<flax.linen.module._Sentinel
                object at 0x7f1c5f19dcd0>, name:Optional[str]=None)

Parametric gaussian layer.

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = GaussianLayer(features=1, kernel_size=5, fs=5)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

2023-10-26 11:00:50.291617: E external/xla/xla/stream_executor/cuda/cuda_driver.cc:268] failed call to cuInit: CUDA_ERROR_NO_DEVICE: no CUDA-capable device is detected
No GPU/TPU found, falling back to CPU. (Set TF_CPP_MIN_LOG_LEVEL=0 and rerun for more info.)

Parameter shapes:  FrozenDict({
    A: (3,),
    sigma: (3,),
})

import matplotlib.pyplot as plt
kernel = model.return_kernel({"params": params}, c_in=3)
fig, axes = plt.subplots(1, 3)
for k, sigma, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), params["sigma"], axes):
    ax.imshow(k)
    ax.set_title(sigma)
plt.show()

We can also apply a grouped convolution:

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = GaussianLayer(features=3, kernel_size=5, fs=5, feature_group_count=3)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    A: (3,),
    sigma: (3,),
})

import matplotlib.pyplot as plt
kernel = model.return_kernel({"params": params}, c_in=3)
fig, axes = plt.subplots(1, 3)
for k, sigma, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), params["sigma"], axes):
    ax.imshow(k)
    ax.set_title(sigma)
plt.show()

We can test if the precalculated filters are updated when in training mode and stay the same when in evaluation mode:

outputs, updated_state = model.apply({"params": params, **state}, x, mutable=list(state.keys()), train=True)
assert not jax.tree_util.tree_map(lambda x,y: (x==y).all(), state, updated_state)["precalc_filter"]["kernel"]

CPU times: user 54.5 ms, sys: 0 ns, total: 54.5 ms
Wall time: 53.4 ms

outputs, updated_state = model.apply({"params": params, **state}, x, mutable=list(state.keys()), train=False)
assert jax.tree_util.tree_map(lambda x,y: (x==y).all(), state, updated_state)["precalc_filter"]["kernel"]

CPU times: user 8.35 ms, sys: 204 µs, total: 8.56 ms
Wall time: 7.99 ms

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = GaussianLayerGamma(features=1, kernel_size=5, fs=5)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    A: (3,),
    gamma: (3,),
})

import matplotlib.pyplot as plt
kernel = model.return_kernel({"params": params}, c_in=3)
fig, axes = plt.subplots(1, 3)
for k, sigma, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), 1/params["gamma"], axes):
    ax.imshow(k)
    ax.set_title(sigma)
plt.show()

We see that there is a time difference in both executions, which makes sense because when train=False, the filters don’t have to be calculated and thus the function should run faster.

And let’s see if we’re able to train the layer weights while maintaining the state:

from functools import partial

@partial(jax.jit, static_argnums=(0, 1))
def update_step(apply_fn, tx, inputs, opt_state, params, state):
    def loss(params):
        pred, updated_state = apply_fn({"params": params, **state},
                                       x,
                                       mutable=list(state.keys()),
                                       train=True)
        loss = ((pred-inputs)**2).mean()
        return loss, updated_state
    (l, updated_state), grads = jax.value_and_grad(loss, has_aux=True)(params)
    updates, opt_state = tx.update(grads, opt_state)
    params = optax.apply_updates(params, updates)
    return opt_state, params, updated_state, l

model = GaussianLayer(features=3, kernel_size=21, fs=21)
variables = model.init(random.PRNGKey(0), x)
# Split state and params (which are updated by optimizer).
state, params = variables.pop('params')
del variables  # Delete variables to avoid wasting resources
tx = optax.sgd(learning_rate=3e-4)
opt_state = tx.init(params)

for i in range(1001):
  opt_state, params, state, loss = update_step(
      model.apply, tx, x, opt_state, params, state)
  if i % 100 == 0: print(f"Loss {i}: {loss}")

Loss 0: 63022.55078125
Loss 100: 6.95550537109375
Loss 200: 4.45768928527832
Loss 300: 3.467116117477417
Loss 400: 2.92319393157959
Loss 500: 2.5758800506591797
Loss 600: 2.3336243629455566
Loss 700: 2.154496431350708
Loss 800: 2.016449451446533
Loss 900: 1.9067078828811646
Loss 1000: 1.8173458576202393

The loss is going down, so everything looking good so far!

Gabor layer

We’ll repeat the process but now with a Gabor functional form.

---

source

GaborLayer

 GaborLayer (features:int, kernel_size:Union[int,Sequence[int]],
             strides:int=1, padding:str='SAME', feature_group_count:int=1,
             kernel_init:Callable=<function init>,
             bias_init:Callable=<function zeros>, use_bias:bool=False,
             xmean:float=0.5, ymean:float=0.5, fs:float=1,
             normalize_prob:bool=True, normalize_energy:bool=False, parent
             :Union[Type[flax.linen.module.Module],Type[flax.core.scope.Sc
             ope],Type[flax.linen.module._Sentinel],NoneType]=<flax.linen.
             module._Sentinel object at 0x7f1c5f19dcd0>,
             name:Optional[str]=None)

Parametric Gabor layer.

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = GaborLayer(features=1, kernel_size=21, fs=21)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    A: (3,),
    freq: (3,),
    logsigmax: (3,),
    logsigmay: (3,),
    rot_theta: (3,),
    sigma_theta: (3,),
    theta: (3,),
})

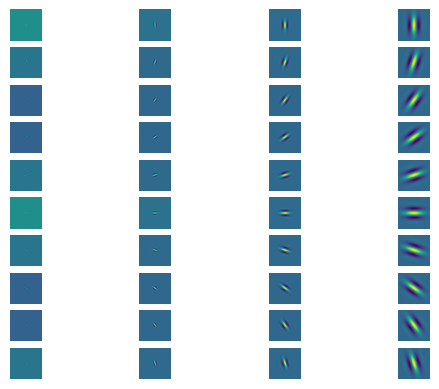

import matplotlib.pyplot as plt
kernel = model.return_kernel(params, c_in=3)
fig, axes = plt.subplots(1, 3)
# for k, sigmax, sigmay, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), params["sigmax"], params["sigmay"], axes):
for k, sigmax, sigmay, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), jnp.exp(params["logsigmax"]), jnp.exp(params["logsigmay"]), axes):
    ax.imshow(k)
    ax.set_title(f"{sigmax:.2f}, {sigmay:.2f}")
plt.show()

We can test if the precalculated filters are updated when in training mode and stay the same when in evaluation mode:

outputs, updated_state = model.apply({"params": params, **state}, x, mutable=list(state.keys()), train=True)
assert not jax.tree_util.tree_map(lambda x,y: (x==y).all(), state, updated_state)["precalc_filter"]["kernel"]

CPU times: user 126 ms, sys: 0 ns, total: 126 ms
Wall time: 93.3 ms

outputs, updated_state = model.apply({"params": params, **state}, x, mutable=list(state.keys()), train=False)
assert jax.tree_util.tree_map(lambda x,y: (x==y).all(), state, updated_state)["precalc_filter"]["kernel"]

CPU times: user 53.7 ms, sys: 848 µs, total: 54.6 ms
Wall time: 21.3 ms

We see that there is a time difference in both executions, which makes sense because when train=False, the filters don’t have to be calculated and thus the function should run faster.

And let’s see if we’re able to train the layer weights while maintaining the state:

from functools import partial

@partial(jax.jit, static_argnums=(0, 1))
def update_step(apply_fn, tx, inputs, opt_state, params, state):
    def loss(params):
        pred, updated_state = apply_fn({"params": params, **state},
                                       x,
                                       mutable=list(state.keys()),
                                       train=True)
        loss = ((pred-inputs)**2).mean()
        return loss, updated_state
    (l, updated_state), grads = jax.value_and_grad(loss, has_aux=True)(params)
    updates, opt_state = tx.update(grads, opt_state)
    params = optax.apply_updates(params, updates)
    return opt_state, params, updated_state, l

model = GaborLayer(features=1, kernel_size=21, fs=21)
variables = model.init(random.PRNGKey(0), x)
# Split state and params (which are updated by optimizer).
state, params = variables.pop('params')
params

FrozenDict({
    freq: Array([ 0.6816269, 10.3780775,  1.1226437], dtype=float32),
    logsigmax: Array([-2.4631429, -2.717532 , -0.7740796], dtype=float32),
    logsigmay: Array([-3.0342553 , -2.29462   , -0.74401677], dtype=float32),
    theta: Array([3.050746 , 0.9813687, 1.7434841], dtype=float32),
    sigma_theta: Array([2.1122246, 2.7645009, 0.9459793], dtype=float32),
    rot_theta: Array([2.5787003, 1.4155393, 0.6662881], dtype=float32),
    A: Array([1., 1., 1.], dtype=float32),
})

model = GaborLayer(features=1, kernel_size=21, fs=21)
variables = model.init(random.PRNGKey(0), x)
# Split state and params (which are updated by optimizer).
state, params = variables.pop('params')
del variables  # Delete variables to avoid wasting resources
tx = optax.sgd(learning_rate=3e-4)
opt_state = tx.init(params)
print(params)

for i in range(1001):
  opt_state, params, state, loss = update_step(
      model.apply, tx, x, opt_state, params, state)
  if i % 100 == 0: print(f"Loss {i}: {loss}")
  # print(f"Loss {i}: {loss}")
  # print(params)

FrozenDict({
    freq: Array([ 0.6816269, 10.3780775,  1.1226437], dtype=float32),
    logsigmax: Array([-2.4631429, -2.717532 , -0.7740796], dtype=float32),
    logsigmay: Array([-3.0342553 , -2.29462   , -0.74401677], dtype=float32),
    theta: Array([3.050746 , 0.9813687, 1.7434841], dtype=float32),
    sigma_theta: Array([2.1122246, 2.7645009, 0.9459793], dtype=float32),
    rot_theta: Array([2.5787003, 1.4155393, 0.6662881], dtype=float32),
    A: Array([1., 1., 1.], dtype=float32),
})
Loss 0: 10626.9873046875
Loss 100: 6.143118381500244
Loss 200: 3.38569712638855
Loss 300: 2.52960205078125
Loss 400: 2.1249730587005615
Loss 500: 1.892602801322937
Loss 600: 1.7426190376281738
Loss 700: 1.6378751993179321
Loss 800: 1.560489296913147
Loss 900: 1.50087308883667
Loss 1000: 1.4534586668014526

The loss is going down, so everything looking good so far!

Center Surround layer

---

source

CenterSurroundLogSigma

 CenterSurroundLogSigma (features:int,
                         kernel_size:Union[int,Sequence[int]],
                         strides:int=1, padding:str='SAME',
                         feature_group_count:int=1,
                         kernel_init:Callable=<function init>,
                         bias_init:Callable=<function zeros>,
                         use_bias:bool=False, xmean:float=0.5,
                         ymean:float=0.5, fs:float=1,
                         normalize_prob:bool=True,
                         normalize_energy:bool=False, parent:Union[Type[fl
                         ax.linen.module.Module],Type[flax.core.scope.Scop
                         e],Type[flax.linen.module._Sentinel],NoneType]=<f
                         lax.linen.module._Sentinel object at
                         0x7f1c5f19dcd0>, name:Optional[str]=None)

Parametric center surround layer that optimizes log(sigma) instead of sigma.

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = CenterSurroundLogSigma(features=1, kernel_size=21, fs=21)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    A: (3,),
    logsigma: (3,),
    logsigma2: (3,),
})

import matplotlib.pyplot as plt
kernel = model.return_kernel({"params": params}, c_in=3)
fig, axes = plt.subplots(1, 3)
for k, sigma, sigma2, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), jnp.exp(params["logsigma"]), jnp.exp(params["logsigma2"]), axes):
    ax.imshow(k)
    ax.set_title(f"{sigma:.2f} | {sigma2:.2f}")
plt.show()

---

source

CenterSurroundLogSigmaK

 CenterSurroundLogSigmaK (features:int,
                          kernel_size:Union[int,Sequence[int]],
                          strides:int=1, padding:str='SAME',
                          feature_group_count:int=1,
                          kernel_init:Callable=<function init>,
                          bias_init:Callable=<function zeros>,
                          use_bias:bool=False, xmean:float=0.5,
                          ymean:float=0.5, fs:float=1,
                          normalize_prob:bool=True,
                          normalize_energy:bool=True, parent:Union[Type[fl
                          ax.linen.module.Module],Type[flax.core.scope.Sco
                          pe],Type[flax.linen.module._Sentinel],NoneType]=
                          <flax.linen.module._Sentinel object at
                          0x7f1c5f19dcd0>, name:Optional[str]=None)

Parametric center surround layer that optimizes log(sigma) instead of sigma and has a factor K instead of a second sigma.

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = CenterSurroundLogSigmaK(features=1, kernel_size=21, fs=21)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    A: (3,),
    K: (3,),
    logsigma: (3,),
})

import matplotlib.pyplot as plt
kernel = model.return_kernel({"params": params}, c_in=3)
fig, axes = plt.subplots(1, 3)
for k, sigma, K, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), jnp.exp(params["logsigma"]), params["K"], axes):
    ax.imshow(k)
    ax.set_title(f"{sigma:.2f} | {K:.2f}")
plt.show()

We can test if the precalculated filters are updated when in training mode and stay the same when in evaluation mode:

outputs, updated_state = model.apply({"params": params, **state}, x, mutable=list(state.keys()), train=True)
assert not jax.tree_util.tree_map(lambda x,y: (x==y).all(), state, updated_state)["precalc_filter"]["kernel"]

CPU times: user 69.3 ms, sys: 692 µs, total: 70 ms
Wall time: 44.5 ms

outputs, updated_state = model.apply({"params": params, **state}, x, mutable=list(state.keys()), train=False)
assert jax.tree_util.tree_map(lambda x,y: (x==y).all(), state, updated_state)["precalc_filter"]["kernel"]

CPU times: user 42.9 ms, sys: 3.31 ms, total: 46.2 ms
Wall time: 18.2 ms

We see that there is a time difference in both executions, which makes sense because when train=False, the filters don’t have to be calculated and thus the function should run faster.

And let’s see if we’re able to train the layer weights while maintaining the state:

from functools import partial

@partial(jax.jit, static_argnums=(0, 1))
def update_step(apply_fn, tx, inputs, opt_state, params, state):
    def loss(params):
        pred, updated_state = apply_fn({"params": params, **state},
                                       x,
                                       mutable=list(state.keys()),
                                       train=True)
        loss = ((pred-inputs)**2).mean()
        return loss, updated_state
    (l, updated_state), grads = jax.value_and_grad(loss, has_aux=True)(params)
    updates, opt_state = tx.update(grads, opt_state)
    params = optax.apply_updates(params, updates)
    return opt_state, params, updated_state, l

model = CenterSurroundLogSigmaK(features=3, kernel_size=21, fs=21)
variables = model.init(random.PRNGKey(0), x)
# Split state and params (which are updated by optimizer).
state, params = variables.pop('params')
del variables  # Delete variables to avoid wasting resources
tx = optax.sgd(learning_rate=3e-4)
opt_state = tx.init(params)

for i in range(1001):
  opt_state, params, state, loss = update_step(
      model.apply, tx, x, opt_state, params, state)
  if i % 100 == 0: print(f"Loss {i}: {loss}")

Loss 0: 3.696951150894165
Loss 100: 3.5763230323791504
Loss 200: 3.461315870285034
Loss 300: 3.6426374912261963
Loss 400: 3.516855239868164
Loss 500: 3.403351068496704
Loss 600: 3.2899224758148193
Loss 700: 3.182372808456421
Loss 800: 3.0803799629211426
Loss 900: 2.9836363792419434
Loss 1000: 2.8918251991271973

The loss is going down, so everything looking good so far!

Gabor_

---

source

GaborLayer_

 GaborLayer_ (n_scales:int, n_orientations:int,
              kernel_size:Union[int,Sequence[int]], strides:int=1,
              padding:str='SAME', feature_group_count:int=1,
              kernel_init:Callable=<function init>,
              bias_init:Callable=<function zeros>, use_bias:bool=False,
              xmean:float=0.5, ymean:float=0.5, fs:float=1,
              normalize_prob:bool=True, normalize_energy:bool=False,
              zero_mean:bool=False, parent:Union[Type[flax.linen.module.Mo
              dule],Type[flax.core.scope.Scope],Type[flax.linen.module._Se
              ntinel],NoneType]=<flax.linen.module._Sentinel object at
              0x7f1c5f19dcd0>, name:Optional[str]=None)

Parametric Gabor layer with particular initialization.

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,1))
model = GaborLayerLogSigma_(n_scales=4, n_orientations=10, kernel_size=64, fs=64, normalize_prob=True, normalize_energy=False)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    freq: (4,),
    logsigmax2: (4,),
    logsigmay2: (4,),
    sigma_theta: (10,),
    theta: (10,),
})

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = GaborLayerGamma_(n_scales=4, n_orientations=10, kernel_size=64, fs=64, normalize_prob=True, normalize_energy=False)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    freq: (4,),
    gammax: (4,),
    gammay: (4,),
    sigma_theta: (10,),
    sigmax: (4,),
    sigmay: (4,),
    theta: (10,),
})

key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(28,28,3))
model = GaborLayer_(n_scales=4, n_orientations=10, kernel_size=64, fs=64, normalize_prob=True, normalize_energy=False)
variables = model.init(key2, x)
state, params = variables.pop("params")
print("Parameter shapes: ", jax.tree_util.tree_map(lambda x: x.shape, params))

Parameter shapes:  FrozenDict({
    freq: (4,),
    sigma_theta: (10,),
    sigmax: (4,),
    sigmay: (4,),
    theta: (10,),
})

params

FrozenDict({
    freq: Array([24., 12.,  6.,  3.], dtype=float32),
    sigmax: Array([0.01666667, 0.03333334, 0.06666667, 0.13333334], dtype=float32),
    sigmay: Array([0.025     , 0.05      , 0.10000001, 0.20000002], dtype=float32),
    theta: Array([0.        , 0.31415927, 0.62831855, 0.9424778 , 1.2566371 ,
           1.5707964 , 1.8849556 , 2.1991148 , 2.5132742 , 2.8274336 ],      dtype=float32),
    sigma_theta: Array([0.        , 0.31415927, 0.62831855, 0.9424778 , 1.2566371 ,
           1.5707964 , 1.8849556 , 2.1991148 , 2.5132742 , 2.8274336 ],      dtype=float32),
})

x, y = model.generate_dominion()
kernel = jax.vmap(GaborLayer_.gabor, in_axes=(None,None,None,None,0,0,0,None,None,None,None,None,None), out_axes=0)
# kernel = jax.vmap(kernel, in_axes=(None,None,None,None,None,None,0,None,None,None,None,None,None), out_axes=0)
kernel = jax.vmap(kernel, in_axes=(None,None,None,None,None,None,None,0,0,None,None,None,None), out_axes=0)
kernel = jax.vmap(kernel, in_axes=(None,None,None,None,None,None,None,None,None,0,None,None,None), out_axes=0)(x, y, model.xmean, model.ymean, params["sigmax"], params["sigmay"], params["freq"], params["theta"], params["sigma_theta"], model.phase, 1, model.normalize_prob, model.normalize_energy)
# kernel = rearrange(kernel, "phases rots fs_sigmas kx ky -> kx ky (phases rots fs_sigmas)")
# kernel = repeat(kernel, "kx ky c_out -> kx ky c_in c_out", c_in=3, c_out=kernel.shape[-1])
kernel.shape

(2, 10, 4, 64, 64)

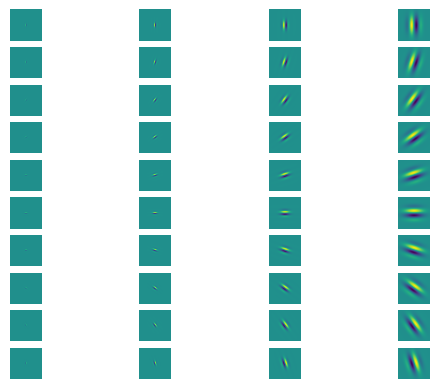

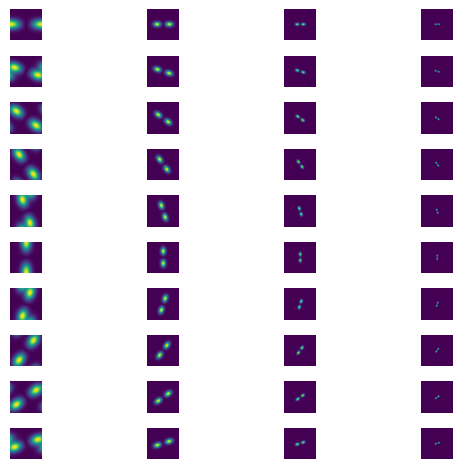

fig, axes = plt.subplots(kernel.shape[1],kernel.shape[2])
for i, axs in enumerate(axes):
    for j, ax in enumerate(axs):
        ax.imshow(kernel[0,i,j])
        ax.axis("off")
plt.show()

fig, axes = plt.subplots(kernel.shape[1],kernel.shape[2])
for i, axs in enumerate(axes):
    for j, ax in enumerate(axs):
        ax.imshow(kernel[1,i,j])
        ax.axis("off")
plt.show()

kernel_f = rearrange(kernel[1:2], "phases rots fs_sigmas kx ky -> (phases rots fs_sigmas) kx ky")
kernel_f.shape

(40, 64, 64)

kernel_f_fft = jnp.fft.fftn(kernel_f)
kernel_f_fft = jnp.fft.fftshift(kernel_f_fft)
kernel_f_fft_abs_sum = jnp.abs(kernel_f_fft).sum(axis=0)
kernel_f_fft.shape, kernel_f_fft_abs_sum.shape

((40, 64, 64), (64, 64))

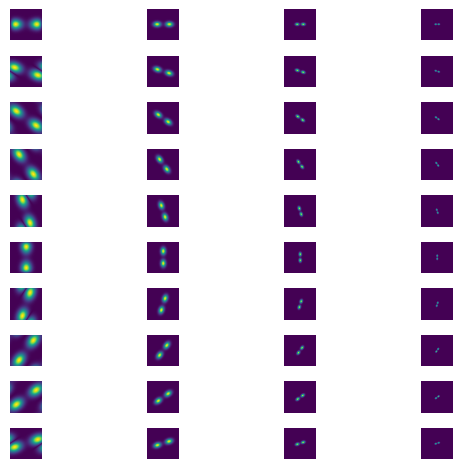

fig, axes = plt.subplots(kernel.shape[1],kernel.shape[2])
for i, axs in enumerate(axes):
    for j, ax in enumerate(axs):
        ax.imshow(jnp.abs(jnp.fft.fftshift(jnp.fft.fftn(kernel[0,i,j]))))
        ax.axis("off")
plt.tight_layout()
plt.show()

fig, axes = plt.subplots(kernel.shape[1],kernel.shape[2])
for i, axs in enumerate(axes):
    for j, ax in enumerate(axs):
        ax.imshow(jnp.abs(jnp.fft.fftshift(jnp.fft.fftn(kernel[1,i,j]))))
        ax.axis("off")
plt.tight_layout()
plt.show()

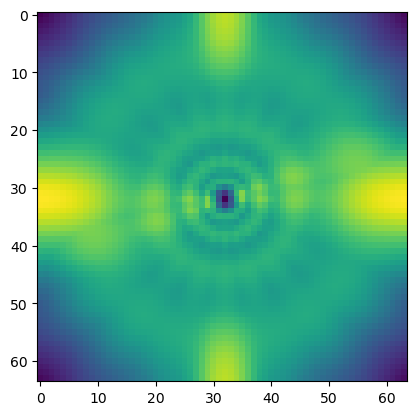

plt.imshow(kernel_f_fft_abs_sum)
plt.show()

# #| eval: false
# import matplotlib.pyplot as plt
# kernel = model.return_kernel(params, c_in=3)
# fig, axes = plt.subplots(1, 3)
# # for k, sigmax, sigmay, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), params["sigmax"], params["sigmay"], axes):
# for k, sigmax, sigmay, ax in zip(rearrange(kernel, "kx ky cin cout -> (cin cout) kx ky"), jnp.exp(params["sigmax"]), jnp.exp(params["sigmay"]), axes):
#     ax.imshow(k)
#     ax.set_title(f"{sigmax:.2f}, {sigmay:.2f}")
# plt.show()

J & H

---

source

JamesonHurvich

 JamesonHurvich (parent:Union[Type[flax.linen.module.Module],Type[flax.cor
                 e.scope.Scope],Type[flax.linen.module._Sentinel],NoneType
                 ]=<flax.linen.module._Sentinel object at 0x7f1c5f19dcd0>,
                 name:Optional[str]=None)

Jameson & Hurvich transformation from RGB to ATD.

import cv2
loros = cv2.imread("loros.jpeg")
loros = cv2.cvtColor(loros, cv2.COLOR_BGR2RGB) / 255.0
plt.imshow(loros)
plt.show()

T = JamesonHurvich()
pred = T.apply({"params":{"":[]}}, loros)

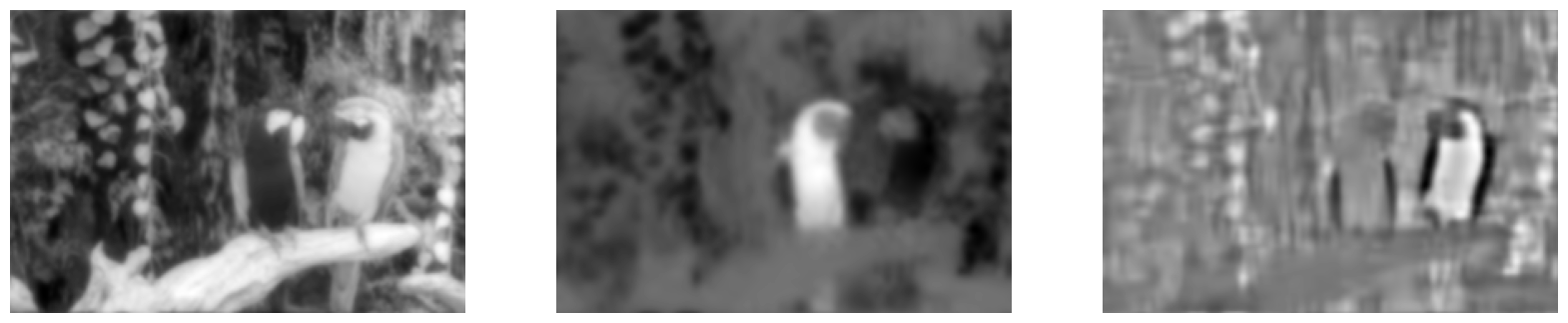

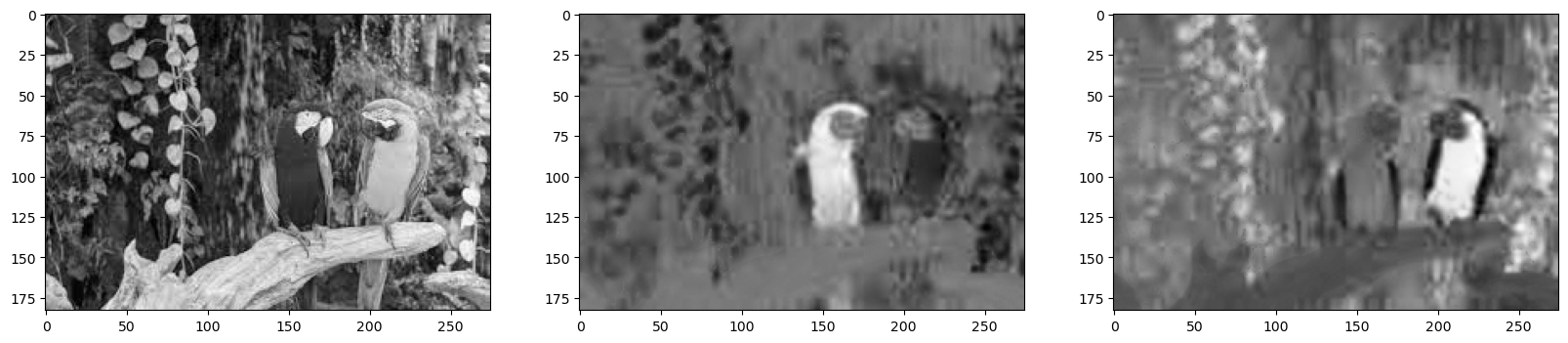

fig, axes = plt.subplots(1,3, figsize=(20,4))
for i, ax in enumerate(axes):
    ax.imshow(pred[:,:,i], cmap="gray")
plt.show()

CSF

---

source

CSFFourier

 CSFFourier (fs:int=64, norm_energy:bool=True, parent:Union[Type[flax.line
             n.module.Module],Type[flax.core.scope.Scope],Type[flax.linen.
             module._Sentinel],NoneType]=<flax.linen.module._Sentinel
             object at 0x7f1c5f19dcd0>, name:Optional[str]=None)

CSF SSO.

model = CSFFourier()
key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(1,28,29,3))
variables = model.init(key2, x)
state, params = variables.pop("params")

def forward(params, inputs):
    return model.apply({"params": params}, inputs)

_ = forward(params, x)
_ = jax.jit(forward)(params, x)

from functools import partial

f = jax.jit(model.csf_sso, static_argnums=(1,2))
f(fs=64, Nx=4, Ny=4, alpha=1., beta=1.)
f(fs=64, Nx=6, Ny=6, alpha=1., beta=1.)

(Array([[7.4208830e-04, 2.5290015e-01, 2.0652041e+00, 4.0784965e+00,
         2.0652041e+00, 2.5290015e-01],
        [2.5290015e-01, 5.6689572e-02, 4.7199564e+00, 1.7653423e+01,
         4.7199564e+00, 5.6689572e-02],
        [2.0652041e+00, 4.7199564e+00, 4.3300481e+00, 7.6411346e+01,
         4.3300481e+00, 4.7199564e+00],
        [4.0784965e+00, 1.7653423e+01, 7.6411346e+01, 5.3465088e+01,
         7.6411346e+01, 1.7653423e+01],
        [2.0652041e+00, 4.7199564e+00, 4.3300481e+00, 7.6411346e+01,
         4.3300481e+00, 4.7199564e+00],
        [2.5290015e-01, 5.6689572e-02, 4.7199564e+00, 1.7653423e+01,
         4.7199564e+00, 5.6689572e-02]], dtype=float32),
 Array([[-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334]], dtype=float32),
 Array([[-32.      , -32.      , -32.      , -32.      , -32.      ,
         -32.      ],
        [-21.333334, -21.333334, -21.333334, -21.333334, -21.333334,
         -21.333334],
        [-10.666667, -10.666667, -10.666667, -10.666667, -10.666667,
         -10.666667],
        [  0.      ,   0.      ,   0.      ,   0.      ,   0.      ,
           0.      ],
        [ 10.666667,  10.666667,  10.666667,  10.666667,  10.666667,
          10.666667],
        [ 21.333334,  21.333334,  21.333334,  21.333334,  21.333334,
          21.333334]], dtype=float32))

@partial(jax.jit, static_argnums=(0,1))
def test(Nx, Ny):
    return model.csf_sso(fs=64, Nx=Nx, Ny=Ny, alpha=1., beta=1.)
test(Nx=4, Ny=4)
test(Nx=6, Ny=6)

(Array([[7.4208830e-04, 2.5290015e-01, 2.0652041e+00, 4.0784965e+00,
         2.0652041e+00, 2.5290015e-01],
        [2.5290015e-01, 5.6689572e-02, 4.7199564e+00, 1.7653423e+01,
         4.7199564e+00, 5.6689572e-02],
        [2.0652041e+00, 4.7199564e+00, 4.3300481e+00, 7.6411346e+01,
         4.3300481e+00, 4.7199564e+00],
        [4.0784965e+00, 1.7653423e+01, 7.6411346e+01, 5.3465088e+01,
         7.6411346e+01, 1.7653423e+01],
        [2.0652041e+00, 4.7199564e+00, 4.3300481e+00, 7.6411346e+01,
         4.3300481e+00, 4.7199564e+00],
        [2.5290015e-01, 5.6689572e-02, 4.7199564e+00, 1.7653423e+01,
         4.7199564e+00, 5.6689572e-02]], dtype=float32),
 Array([[-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334]], dtype=float32),
 Array([[-32.      , -32.      , -32.      , -32.      , -32.      ,
         -32.      ],
        [-21.333334, -21.333334, -21.333334, -21.333334, -21.333334,
         -21.333334],
        [-10.666667, -10.666667, -10.666667, -10.666667, -10.666667,
         -10.666667],
        [  0.      ,   0.      ,   0.      ,   0.      ,   0.      ,
           0.      ],
        [ 10.666667,  10.666667,  10.666667,  10.666667,  10.666667,
          10.666667],
        [ 21.333334,  21.333334,  21.333334,  21.333334,  21.333334,
          21.333334]], dtype=float32))

f = jax.jit(model.csf_chrom, static_argnums=(1,2))
# f = jax.jit(model.csf_chrom)
f(fs=64, Nx=4, Ny=4, alpha_rg=1., alpha_yb=1., beta=1.)
f(fs=64, Nx=6, Ny=6, alpha_rg=1., alpha_yb=1., beta=1.)

(Array([[  0.1658539 ,   0.46152785,   0.940704  ,   1.220865  ,
           0.940704  ,   0.46152785],
        [  0.46152785,   1.6083002 ,   4.1651654 ,   6.0859256 ,
           4.1651654 ,   1.6083002 ],
        [  0.940704  ,   4.1651654 ,  15.595571  ,  30.33703   ,
          15.595571  ,   4.1651654 ],
        [  1.220865  ,   6.0859256 ,  30.33703   , 150.97502   ,
          30.33703   ,   6.0859256 ],
        [  0.940704  ,   4.1651654 ,  15.595571  ,  30.33703   ,
          15.595571  ,   4.1651654 ],
        [  0.46152785,   1.6083002 ,   4.1651654 ,   6.0859256 ,
           4.1651654 ,   1.6083002 ]], dtype=float32),
 Array([[1.9348152e-03, 1.0028565e-02, 3.1509679e-02, 4.7914241e-02,
         3.1509679e-02, 1.0028565e-02],
        [1.0028565e-02, 7.4629605e-02, 3.4461936e-01, 6.3405633e-01,
         3.4461936e-01, 7.4629605e-02],
        [3.1509679e-02, 3.4461936e-01, 2.8785884e+00, 8.3903189e+00,
         2.8785884e+00, 3.4461936e-01],
        [4.7914241e-02, 6.3405633e-01, 8.3903189e+00, 1.1071500e+02,
         8.3903189e+00, 6.3405633e-01],
        [3.1509679e-02, 3.4461936e-01, 2.8785884e+00, 8.3903189e+00,
         2.8785884e+00, 3.4461936e-01],
        [1.0028565e-02, 7.4629605e-02, 3.4461936e-01, 6.3405633e-01,
         3.4461936e-01, 7.4629605e-02]], dtype=float32),
 Array([[-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334]], dtype=float32),
 Array([[-32.      , -32.      , -32.      , -32.      , -32.      ,
         -32.      ],
        [-21.333334, -21.333334, -21.333334, -21.333334, -21.333334,
         -21.333334],
        [-10.666667, -10.666667, -10.666667, -10.666667, -10.666667,
         -10.666667],
        [  0.      ,   0.      ,   0.      ,   0.      ,   0.      ,
           0.      ],
        [ 10.666667,  10.666667,  10.666667,  10.666667,  10.666667,
          10.666667],
        [ 21.333334,  21.333334,  21.333334,  21.333334,  21.333334,
          21.333334]], dtype=float32))

partial(jax.jit, static_argnums=(0,1))
def test(Nx, Ny):
    return model.csf_chrom(fs=64, Nx=Nx, Ny=Ny, alpha_rg=1., alpha_yb=1., beta=1)
test(Nx=4, Ny=4)
test(Nx=6, Ny=6)

(Array([[  0.1658539 ,   0.46152785,   0.940704  ,   1.220865  ,
           0.940704  ,   0.46152785],
        [  0.46152785,   1.6083002 ,   4.1651654 ,   6.0859256 ,
           4.1651654 ,   1.6083002 ],
        [  0.940704  ,   4.1651654 ,  15.595571  ,  30.33703   ,
          15.595571  ,   4.1651654 ],
        [  1.220865  ,   6.0859256 ,  30.33703   , 150.97502   ,
          30.33703   ,   6.0859256 ],
        [  0.940704  ,   4.1651654 ,  15.595571  ,  30.33703   ,
          15.595571  ,   4.1651654 ],
        [  0.46152785,   1.6083002 ,   4.1651654 ,   6.0859256 ,
           4.1651654 ,   1.6083002 ]], dtype=float32),
 Array([[1.9348152e-03, 1.0028565e-02, 3.1509679e-02, 4.7914241e-02,
         3.1509679e-02, 1.0028565e-02],
        [1.0028565e-02, 7.4629605e-02, 3.4461936e-01, 6.3405633e-01,
         3.4461936e-01, 7.4629605e-02],
        [3.1509679e-02, 3.4461936e-01, 2.8785884e+00, 8.3903189e+00,
         2.8785884e+00, 3.4461936e-01],
        [4.7914241e-02, 6.3405633e-01, 8.3903189e+00, 1.1071500e+02,
         8.3903189e+00, 6.3405633e-01],
        [3.1509679e-02, 3.4461936e-01, 2.8785884e+00, 8.3903189e+00,
         2.8785884e+00, 3.4461936e-01],
        [1.0028565e-02, 7.4629605e-02, 3.4461936e-01, 6.3405633e-01,
         3.4461936e-01, 7.4629605e-02]], dtype=float32),
 Array([[-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334],
        [-32.      , -21.333334, -10.666667,   0.      ,  10.666667,
          21.333334]], dtype=float32),
 Array([[-32.      , -32.      , -32.      , -32.      , -32.      ,
         -32.      ],
        [-21.333334, -21.333334, -21.333334, -21.333334, -21.333334,
         -21.333334],
        [-10.666667, -10.666667, -10.666667, -10.666667, -10.666667,
         -10.666667],
        [  0.      ,   0.      ,   0.      ,   0.      ,   0.      ,
           0.      ],
        [ 10.666667,  10.666667,  10.666667,  10.666667,  10.666667,
          10.666667],
        [ 21.333334,  21.333334,  21.333334,  21.333334,  21.333334,
          21.333334]], dtype=float32))

T = JamesonHurvich()
loros_atd = T.apply({"params":{"":[]}}, loros)

pred = model.apply({"params": params}, loros_atd[None,:])
pred.shape

(1, 183, 275, 3)

Mng2xyz = jnp.array([[69.1661, 52.4902, 46.6052],
                                  [39.0454, 115.8404, 16.3118],
                                  [3.3467, 12.6700, 170.1090]])
Mxyz2atd = jnp.array([[0, 1, 0],
                            [1, -1, 0],
                            [0, 0.4, -0.4]])
Mxyz2ng = jnp.linalg.inv(Mng2xyz)
Matd2xyz = jnp.linalg.inv(Mxyz2atd)

pred_rg = (pred @ Matd2xyz.T @ Mxyz2ng.T)**(1/2)
pred_rg.shape

(1, 183, 275, 3)

plt.imshow(pred_rg[0])
plt.show()

fig, axes = plt.subplots(1,3, figsize=(20,4))
for i in range(3):
    axes[i].imshow(pred[0][:,:,i], cmap="gray")
    axes[i].axis("off")
plt.show()

def step(params):
    pred = model.apply({"params": params}, loros_atd[None,:])
    return jnp.mean((pred - loros_atd[None,:])**2)

@jax.jit
def train_step(params, image, lr=3e-4):
    def step(params):
        pred = model.apply(params, image)
        return jnp.mean((pred - image)**2)

    loss, grad = jax.value_and_grad(step)(params)
    params = jax.tree_util.tree_map(lambda p,g: p - lr*g, params, grad)
    return params, loss

lr = 3e-4
params_ = {"params": params}
for it in range(N_ITERS:=3):
    params_, loss = train_step(params_, loros_atd[None,:], lr=lr)
    print(f"It: {it} -> {loss}")
params_

It: 0 -> 1214.27734375
It: 1 -> 273.94989013671875
It: 2 -> 497.3630676269531

{'params': FrozenDict({
     alpha_achrom: Array(1.1354797, dtype=float32),
     alpha_chrom_rg: Array(1.316926, dtype=float32),
     alpha_chrom_yb: Array(1.0976608, dtype=float32),
     beta_achrom: Array(1.2981634, dtype=float32),
     beta_chrom: Array(0.5935609, dtype=float32),
     fm: Array(7.2472496, dtype=float32),
     s: Array(1.8248081, dtype=float32),
 })}

lr = 3e-4
params_ = params
for it in range(N_ITERS:=3):
    loss, grad = jax.value_and_grad(step)(params_)
    params_ = jax.tree_util.tree_map(lambda p,g: p - lr*g, params_, grad)
    print(f"It: {it} -> {loss}")
params_

It: 0 -> 1214.27734375
It: 1 -> 273.9499206542969
It: 2 -> 497.36279296875

FrozenDict({
    alpha_achrom: Array(1.1354793, dtype=float32),
    alpha_chrom_rg: Array(1.3169256, dtype=float32),
    alpha_chrom_yb: Array(1.0976607, dtype=float32),
    beta_achrom: Array(1.2981635, dtype=float32),
    beta_chrom: Array(0.5935616, dtype=float32),
    fm: Array(7.2472496, dtype=float32),
    s: Array(1.8248082, dtype=float32),
})

## DN después de la CSF
# b = 0.04 [0-1]
# sigma = 0.02 (deg)

fs = 64
Nx, Ny = loros[None,:].shape[1:3]
alpha = 1.
beta = 1.
# for beta in [10., 1., 0.8, 0.5, 0.01, 0.]:

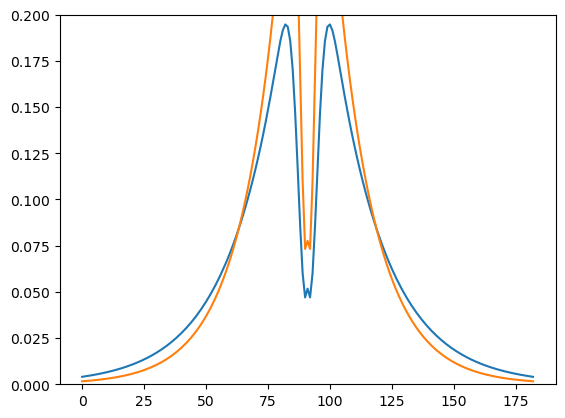

for p in [params, params_]:
    csf, _, _ = model.csf_sso(fs, Nx, Ny, p["alpha_achrom"], p["beta_achrom"], g=330.74, fm=p["fm"], l=0.837, s=p["s"], w=1.0, os=6.664)
    E1 = jnp.sum(jnp.ones_like(csf)**2)#**(1/2)
    E_CSF = jnp.sum(csf**2)#**(1/2)
    csf = (csf/E_CSF)*E1
    plt.plot(csf[csf.shape[0]//2], label=beta)
# plt.legend()
plt.ylim([0,0.2])
plt.show()

fs = 64
Nx, Ny = loros[None,:].shape[1:3]
alpha = 1.
beta = 1.

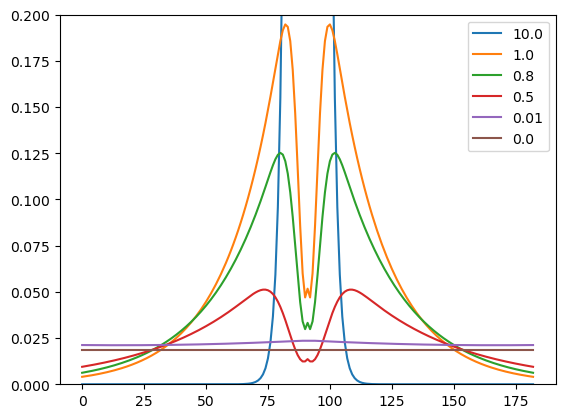

for beta in [10., 1., 0.8, 0.5, 0.01, 0.]:
    csf, _, _ = model.csf_sso(fs, Nx, Ny, alpha, beta, g=330.74, fm=7.28, l=0.837, s=1.809, w=1.0, os=6.664)
    E1 = jnp.sum(jnp.ones_like(csf)**2)#**(1/2)
    E_CSF = jnp.sum(csf**2)#**(1/2)
    csf = (csf/E_CSF)*E1
    plt.plot(csf[csf.shape[0]//2], label=beta)
plt.legend()
plt.ylim([0,0.2])
plt.show()

GDN

---

source

GDN

 GDN (kernel_size:Union[int,Sequence[int]], strides:int=1,
      padding:str='SAME', apply_independently:bool=False,
      kernel_init:Callable=<function init>, bias_init:Callable=<function
      ones>, alpha:float=2.0, epsilon:float=0.5, eps:float=1e-06, parent:U
      nion[Type[flax.linen.module.Module],Type[flax.core.scope.Scope],Type
      [flax.linen.module._Sentinel],NoneType]=<flax.linen.module._Sentinel
      object at 0x7f1c5f19dcd0>, name:Optional[str]=None)

Generalized Divisive Normalization.

GDN star

---

source

GDNStar

 GDNStar (kernel_size:Sequence[int], apply_independently:bool=False,
          inputs_star:Union[float,Sequence[float]]=1.0, alpha:float=2.0,
          epsilon:float=0.5, kernel_init:Callable=<function ones>,
          bias_init:Callable=<function ones>, parent:Union[Type[flax.linen
          .module.Module],Type[flax.core.scope.Scope],Type[flax.linen.modu
          le._Sentinel],NoneType]=<flax.linen.module._Sentinel object at
          0x7f1c5f19dcd0>, name:Optional[str]=None)

GDN variation that forces the output to be 1 when the input is x^*

model = GDNStar(kernel_size=(1,1))
key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(1,28,28,1))
variables = model.init(key2, x)
state, params = variables.pop("params")

params = unfreeze(params)
params["Conv_0"]["kernel"] *= 0.
params["Conv_0"]["kernel"] += 1.
params["Conv_0"]["bias"] += 1.
params = freeze(params)
params

FrozenDict({
    Conv_0: {
        bias: Array([1.], dtype=float32),
        kernel: Array([[[[1.]]]], dtype=float32),
    },
})

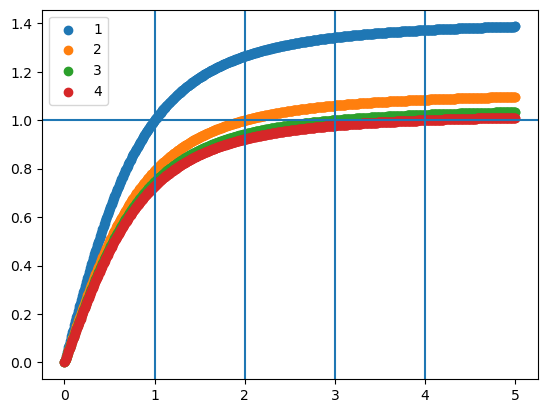

inputs = jnp.linspace(0, 5, num=28*28).reshape((1,28,28,1))

for inputs_star in [1, 2, 3, 4]:
    model.inputs_star = inputs_star
    pred = model.apply({"params": params}, inputs)
    plt.scatter(inputs.ravel(), pred.ravel(), label=inputs_star)
    plt.axvline(inputs_star)

plt.axhline(1)
plt.legend()
plt.show()

model.inputs_star = 1

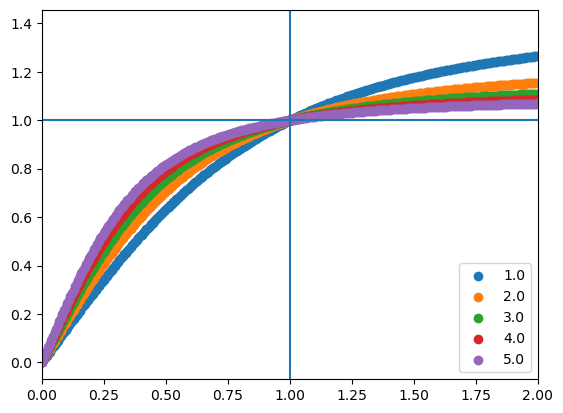

for H in [1., 2., 3., 4., 5.]:
    params = unfreeze(params)
    params["Conv_0"]["kernel"] *= 0.
    params["Conv_0"]["kernel"] += H
    params = freeze(params)
    pred = model.apply({"params": params}, inputs)
    plt.scatter(inputs.ravel(), pred.ravel(), label=H)
plt.axhline(1)
plt.axvline(1)
plt.legend()
plt.xlim([0,2])
plt.show()

We can even specify a different value of \(x^*\) for each input channel:

model = GDNStar(kernel_size=(1,1), inputs_star=jnp.array([1.,2.,3.,4.]))
key1, key2 = random.split(random.PRNGKey(0), 2)
inputs = jnp.ones(shape=(1,28,28,4))
variables = model.init(key2, inputs)
state, params = variables.pop("params")
pred = model.apply({"params": params}, inputs)
assert len(jnp.unique(jnp.unique(jnp.unique(pred, 0), 0), 0)) == 4

GDN star (positives and negatives)

---

source

GDNStarSign

 GDNStarSign (kernel_size:Sequence[int], apply_independently:bool=False,
              inputs_star:Union[float,Sequence[float]]=1.0,
              alpha:float=2.0, epsilon:float=0.5, parent:Union[Type[flax.l
              inen.module.Module],Type[flax.core.scope.Scope],Type[flax.li
              nen.module._Sentinel],NoneType]=<flax.linen.module._Sentinel
              object at 0x7f1c5f19dcd0>, name:Optional[str]=None)

GDN variation that forces the output to be 1 when the input is x^*

model = GDNStarSign(kernel_size=(1,1))
key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(1,28,28,1))
variables = model.init(key2, x)
state, params = variables.pop("params")

params = unfreeze(params)
params["Conv_0"]["kernel"] *= 0.
params["Conv_0"]["kernel"] += 1.
params["Conv_0"]["bias"] += 1.
params = freeze(params)
params

FrozenDict({
    Conv_0: {
        bias: Array([1.], dtype=float32),
        kernel: Array([[[[1.]]]], dtype=float32),
    },
})

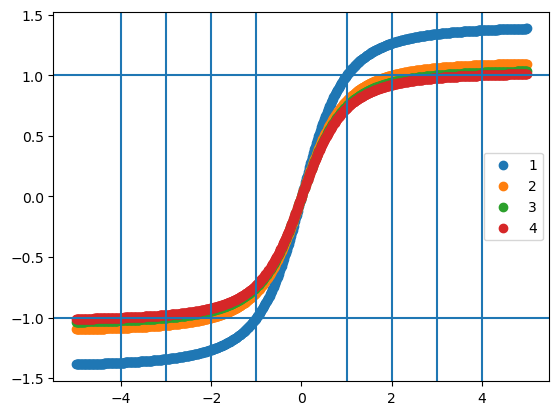

inputs = jnp.linspace(-5, 5, num=28*28).reshape((1,28,28,1))

for inputs_star in [1, 2, 3, 4]:
    model.inputs_star = inputs_star
    pred = model.apply({"params": params}, inputs)
    plt.scatter(inputs.ravel(), pred.ravel(), label=inputs_star)
    plt.axvline(inputs_star)
    plt.axvline(-inputs_star)

plt.axhline(1)
plt.axhline(-1)
plt.legend()
plt.show()

model.inputs_star = 1

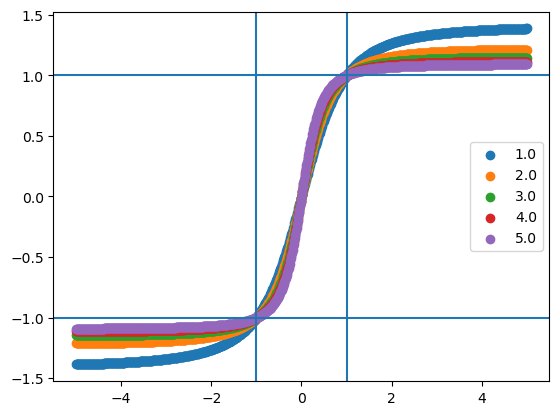

for H in [1., 2., 3., 4., 5.]:
    params = unfreeze(params)
    params["Conv_0"]["kernel"] *= 0.
    params["Conv_0"]["kernel"] += H
    params = freeze(params)
    pred = model.apply({"params": params}, inputs)
    plt.scatter(inputs.ravel(), pred.ravel(), label=H)
plt.axhline(1)
plt.axvline(1)
plt.axhline(-1)
plt.axvline(-1)
plt.legend()
# plt.xlim([0,2])
plt.show()

GDN (Displacement)

inputs = jnp.linspace(-10, 10, num=28*28).reshape((1,28,28,1))

---

source

GDNDisplacement

 GDNDisplacement (kernel_size:Sequence[int],
                  apply_independently:bool=False,
                  inputs_star:Union[float,Sequence[float]]=1.0,
                  alpha:float=2.0, epsilon:float=0.5, parent:Union[Type[fl
                  ax.linen.module.Module],Type[flax.core.scope.Scope],Type
                  [flax.linen.module._Sentinel],NoneType]=<flax.linen.modu
                  le._Sentinel object at 0x7f1c5f19dcd0>,
                  name:Optional[str]=None)

GDN variation that forces the output to be 1 when the input is x^*

model = GDNDisplacement(kernel_size=(1,1))
key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(1,28,28,1))
variables = model.init(key2, x)
state, params = variables.pop("params")

params = unfreeze(params)
params["Conv_0"]["kernel"] *= 0.
params["Conv_0"]["kernel"] += 1.
params["Conv_0"]["bias"] += 1.
params = freeze(params)
params

FrozenDict({
    Conv_0: {
        bias: Array([1.], dtype=float32),
        kernel: Array([[[[1.]]]], dtype=float32),
    },
})

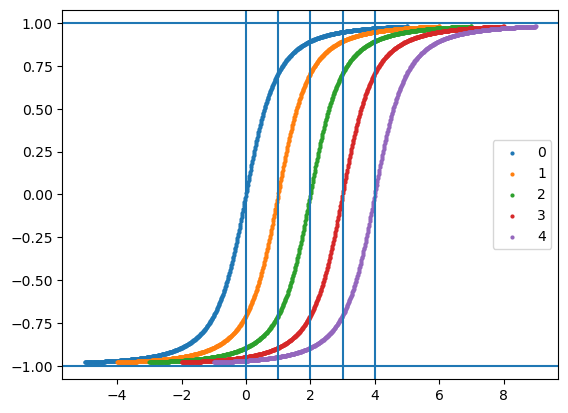

for inputs_mean in [0, 1, 2, 3, 4]:
    inputs_ = jnp.linspace(-5, 5, num=28*28).reshape((1,28,28,1)) + inputs_mean
    pred = model.apply({"params": params}, inputs_)
    plt.scatter(inputs_.ravel(), pred.ravel(), label=inputs_mean, s=4)
    plt.axvline(inputs_mean)

plt.axhline(1)
plt.axhline(-1)
plt.legend()
plt.show()

---

source

GDNStarDisplacement

 GDNStarDisplacement (kernel_size:Sequence[int],
                      apply_independently:bool=False,
                      inputs_star:Union[float,Sequence[float]]=1.0,
                      alpha:float=2.0, epsilon:float=0.5, parent:Union[Typ
                      e[flax.linen.module.Module],Type[flax.core.scope.Sco
                      pe],Type[flax.linen.module._Sentinel],NoneType]=<fla
                      x.linen.module._Sentinel object at 0x7f1c5f19dcd0>,
                      name:Optional[str]=None)

GDN variation that forces the output to be 1 when the input is x^*

model = GDNStarDisplacement(kernel_size=(1,1))
key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(1,28,28,1))
variables = model.init(key2, x)
state, params = variables.pop("params")

params = unfreeze(params)
params["Conv_0"]["kernel"] *= 0.
params["Conv_0"]["kernel"] += 1.
params["Conv_0"]["bias"] += 1.
params = freeze(params)
params

FrozenDict({
    Conv_0: {
        bias: Array([1.], dtype=float32),
        kernel: Array([[[[1.]]]], dtype=float32),
    },
})

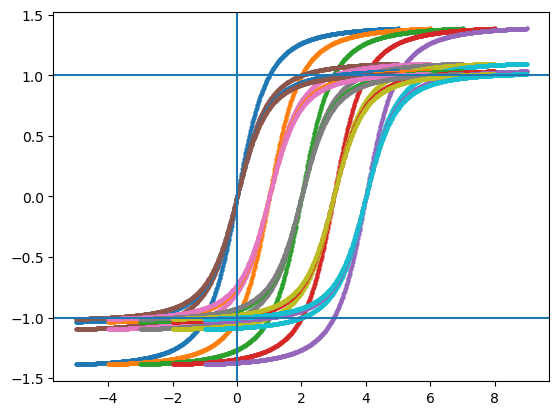

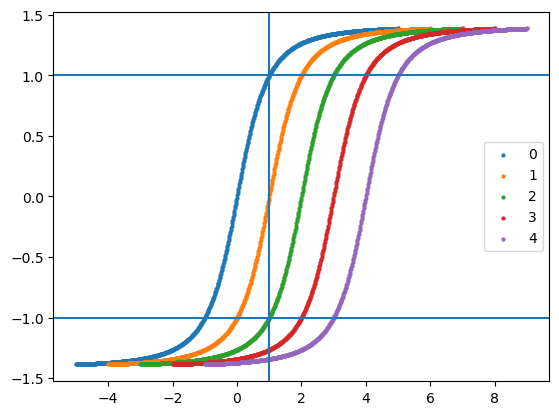

for inputs_mean in [0, 1, 2, 3, 4]:
    inputs_ = jnp.linspace(-5, 5, num=28*28).reshape((1,28,28,1)) + inputs_mean
    pred = model.apply({"params": params}, inputs_)
    plt.scatter(inputs_.ravel(), pred.ravel(), label=inputs_mean, s=4)
plt.axvline(1)

plt.axhline(1)
plt.axhline(-1)
plt.legend()
# plt.ylim([-1,1])
plt.show()

inputs_mean = 0.
for inputs_star in [1, 2, 3, 4]:
    for inputs_mean in [0, 1, 2, 3, 4]:
        model.inputs_star = inputs_star
        inputs_ = jnp.linspace(-5, 5, num=28*28).reshape((1,28,28,1)) + inputs_mean
        pred = model.apply({"params": params}, inputs_)
        plt.scatter(inputs_.ravel(), pred.ravel(), label=f"x*={inputs_star} / x_mean={inputs_mean}", s=4)
plt.axvline(0)

plt.axhline(1)
plt.axhline(-1)
# plt.legend()
# plt.ylim([-1,1])
plt.show()

GDN Batch-Norm-Like

---

source

GDNStarRunning

 GDNStarRunning (kernel_size:Sequence[int],
                 apply_independently:bool=False, alpha:float=2.0,
                 epsilon:float=0.5, bias_init:Callable=<function ones>, pa
                 rent:Union[Type[flax.linen.module.Module],Type[flax.core.
                 scope.Scope],Type[flax.linen.module._Sentinel],NoneType]=
                 <flax.linen.module._Sentinel object at 0x7f1c5f19dcd0>,
                 name:Optional[str]=None)

GDN variation where x^* is obtained as a running mean of the previously obtained values.

model = GDNStarRunning(kernel_size=(1,1))
key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(1,28,28,1))
variables = model.init(key2, x)
state, params = variables.pop("params")

params = unfreeze(params)
params["Conv_0"]["kernel"] *= 0.
params["Conv_0"]["kernel"] += 1.
params["Conv_0"]["bias"] += 1.
params = freeze(params)

outputs, updated_state = model.apply({"params": params, **state}, x, train=False, mutable=list(state.keys()))
assert updated_state == state

outputs, updated_state = model.apply({"params": params, **state}, x, train=True, mutable=list(state.keys()))
assert updated_state != state

updated_state = state

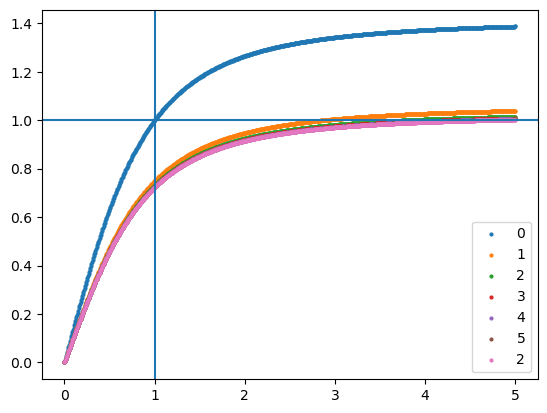

for inputs_mean in [0, 1, 2, 3, 4, 5, 2]:
    inputs_ = jnp.linspace(0, 5, num=28*28).reshape((1,28,28,1))# + inputs_mean
    pred, updated_state = model.apply({"params": params, **updated_state}, inputs_, train=True, mutable=list(state.keys()))
    print(updated_state["batch_stats"]["inputs_star"])
    plt.scatter(inputs_.ravel(), pred.ravel(), label=inputs_mean, s=4)
plt.axvline(1)

plt.axhline(1)
plt.legend()
# plt.ylim([-1,1])
plt.show()

[2.875]
[3.8125]
[4.28125]
[4.515625]
[4.6328125]
[4.6914062]
[4.720703]

GDN Batch-Norm-Like (Displacement)

---

source

GDNStarDisplacementRunning

 GDNStarDisplacementRunning (kernel_size:Sequence[int],
                             apply_independently:bool=False,
                             alpha:float=2.0, epsilon:float=0.5, parent:Un
                             ion[Type[flax.linen.module.Module],Type[flax.
                             core.scope.Scope],Type[flax.linen.module._Sen
                             tinel],NoneType]=<flax.linen.module._Sentinel
                             object at 0x7f1c5f19dcd0>,
                             name:Optional[str]=None)

GDN variation where x^* is obtained as a running mean of the previously obtained values.

model = GDNStarDisplacementRunning(kernel_size=(1,1))
key1, key2 = random.split(random.PRNGKey(0), 2)
x = random.normal(key1, shape=(1,28,28,1))
variables = model.init(key2, x)
state, params = variables.pop("params")

params = unfreeze(params)
params["Conv_0"]["kernel"] *= 0.
params["Conv_0"]["kernel"] += 1.
params["Conv_0"]["bias"] += 1.
params = freeze(params)

outputs, updated_state = model.apply({"params": params, **state}, x, train=False, mutable=list(state.keys()))
assert updated_state == state

outputs, updated_state = model.apply({"params": params, **state}, x, train=True, mutable=list(state.keys()))
assert updated_state != state

updated_state = state

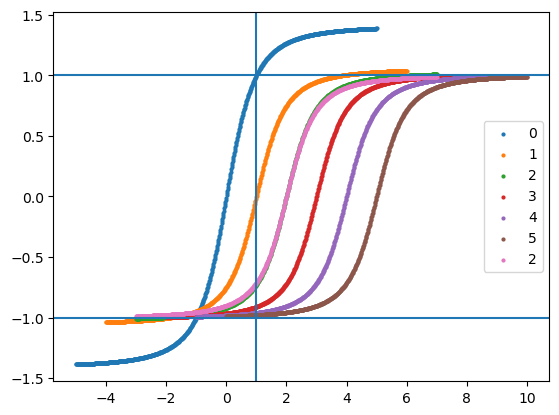

for inputs_mean in [0, 1, 2, 3, 4, 5, 2]:
    inputs_ = jnp.linspace(-5, 5, num=28*28).reshape((1,28,28,1)) + inputs_mean
    pred, updated_state = model.apply({"params": params, **updated_state}, inputs_, train=True, mutable=list(state.keys()))
    print(updated_state["batch_stats"]["inputs_star"])
    plt.scatter(inputs_.ravel(), pred.ravel(), label=inputs_mean, s=4)
plt.axvline(1)

plt.axhline(1)
plt.axhline(-1)
plt.legend()
# plt.ylim([-1,1])
plt.show()

[2.8777137]
[4.188857]
[5.3444285]
[6.4222145]
[7.4611073]
[8.480554]
[7.490277]

Gaussian Frequency Interaction

In some cases it may make sense to model specifically the interaction between frequencies so that closer frequencies interact more than further away frequencies, so we can design a GDN that takes this into account by introducing a Gaussian into it.

May be necessary to combine the interaction and the Gabor in the same layer so that the Gaussian can receive the Gabor frequencies.

---

source

FreqGaussian

 FreqGaussian (use_bias:bool=False, strides:int=1, padding:str='SAME',
               bias_init:Callable=<function zeros>, parent:Union[Type[flax
               .linen.module.Module],Type[flax.core.scope.Scope],Type[flax
               .linen.module._Sentinel],NoneType]=<flax.linen.module._Sent
               inel object at 0x7f1c5f19dcd0>, name:Optional[str]=None)

(1D) Gaussian interaction between frequencies.

fmean = jnp.array([2., 8., 4.])
model = FreqGaussian()
variables = model.init(random.PRNGKey(42), jnp.ones(shape=(1,28,28,3)), fmean=fmean)
state, params = variables.pop("params")

params

FrozenDict({
    sigma: Array([0.8, 3.2, 1.6], dtype=float32),
})

sigma = jnp.array([5, 0.8, 1.2])
kernel = jax.vmap(model.gaussian, in_axes=(None,0,0,None))(fmean, fmean, params["sigma"], 1)
print(kernel.shape)
plt.matshow(kernel)
plt.xticks(ticks=range(len(params["sigma"])), labels=params["sigma"])
plt.yticks(ticks=range(len(params["sigma"])), labels=params["sigma"])
plt.show()

(3, 3)

To test it in combination with the GaborLayer_ we can define a simple module combining them both. This is needed because we need to be able to get the freq from the Gabors and then pass it to the FreqGaussian layer.

class Model(nn.Module):
    """Dummy model to test the combination of the `GaborLayer_` and the `FreqGaussian` layer."""
    @nn.compact
    def __call__(self,
                 inputs,
                 **kwargs,
                 ):
        outputs, fmean = GaborLayer_(n_scales=4, n_orientations=10, kernel_size=64, fs=64, normalize_prob=True, normalize_energy=False)(inputs, **kwargs, return_freq=True)
        outputs = FreqGaussian()(outputs, fmean=fmean)
        return outputs

model = Model()
variables = model.init(random.PRNGKey(42), jnp.ones(shape=(1,28,28,1)))
state, params = variables.pop("params")

Orient Gaussian

Almost like the FreqGaussian but taking into account that degrees are in a circular domain.

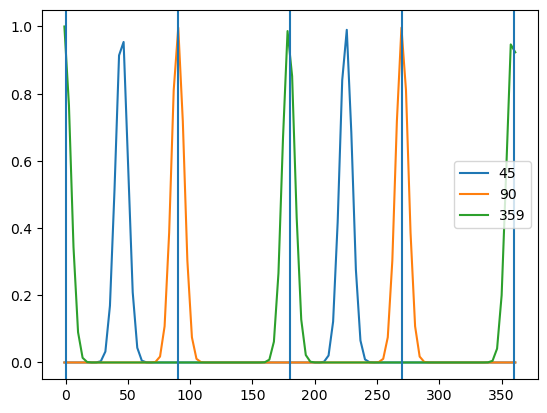

assert wrapTo180(0) == 0
assert wrapTo180(181) == -179
assert wrapTo180(-190) == 170

theta = 380
angle = process_angles(jnp.array([0., 45.]), jnp.array([362., -45.]))#*jnp.pi/180.
angle

Array([ 2., 90.], dtype=float32)

---

source

OrientGaussian

 OrientGaussian (use_bias:bool=False, strides:int=1, padding:str='SAME',
                 bias_init:Callable=<function zeros>, parent:Union[Type[fl
                 ax.linen.module.Module],Type[flax.core.scope.Scope],Type[
                 flax.linen.module._Sentinel],NoneType]=<flax.linen.module
                 ._Sentinel object at 0x7f1c5f19dcd0>,
                 name:Optional[str]=None)

(1D) Gaussian interaction between orientations.

theta_mean = jnp.array([45, 90, 359])
model = OrientGaussian()
variables = model.init(random.PRNGKey(42), jnp.ones(shape=(1,28,28,3)), theta_mean=theta_mean)
state, params = variables.pop("params")

t = jnp.linspace(-1., 361., num=100)
k = jax.vmap(model.gaussian, in_axes=(None,0,None,None))(t, theta_mean, 5., 1)
for kk, tm in zip(k, theta_mean): plt.plot(t, kk, label=tm)
for tm in [0., 90., 180., 270., 360.]: plt.axvline(tm)
plt.legend()
plt.show()

When we are considering a 0 deg filter, we want it to have the maximum relation with both 0 deg and 180 deg. By visualizing the previous graph, we see that we are obtaining what we wanted.

params

FrozenDict({
    sigma: Array([30., 30., 30.], dtype=float32),
})

kernel = jax.vmap(model.gaussian, in_axes=(None,0,0,None))(theta_mean, theta_mean, params["sigma"], 1)
print(kernel.shape)
plt.matshow(kernel)
plt.xticks(ticks=range(len(params["sigma"])), labels=theta_mean)
plt.yticks(ticks=range(len(params["sigma"])), labels=theta_mean)
plt.show()

(3, 3)

To test it in combination with the GaborLayer_ we can define a simple module combining them both. This is needed because we need to be able to get the theta from the Gabors and then pass it to the OrientGaussian layer.

A very important difference with respect to the FreqGaussian case is that the Gabor filters in GaborLayer_ need to be reordered so that we can apply them in the same way.

class Model(nn.Module):
    """Dummy model to test the combination of the `GaborLayer_` and the `OrientGaussian` layer."""
    @nn.compact
    def __call__(self,
                 inputs,
                 **kwargs,
                 ):
        b, h, w, c = inputs.shape
        outputs, theta_mean = GaborLayer_(n_scales=4, n_orientations=10, kernel_size=64, fs=64, normalize_prob=True, normalize_energy=False)(inputs, **kwargs, return_theta=True)
        ## Reshape so that the orientations are the innermost dimmension
        outputs = rearrange(outputs, "b h w (phase theta f) -> b h w (phase f theta)", b=b, h=h, w=w, phase=2, f=4, theta=10)
        outputs = OrientGaussian()(outputs, theta_mean=theta_mean)
        ## Recover original disposition
        outputs = rearrange(outputs, "b h w (phase f theta) -> b h w (phase theta f)", b=b, h=h, w=w, phase=2, f=4, theta=10)
        return outputs

model = Model()
variables = model.init(random.PRNGKey(42), jnp.ones(shape=(1,28,28,1)))
state, params = variables.pop("params")

Putting it all together

We can even combine both layers in a separable-interaction-way.

class Model(nn.Module):
    """Dummy model to test the combination of the `GaborLayer_` and the `OrientGaussian` layer."""
    @nn.compact
    def __call__(self,
                 inputs,
                 **kwargs,
                 ):
        b, h, w, c = inputs.shape
        outputs, fmean, theta_mean = GaborLayer_(n_scales=4, n_orientations=10, kernel_size=64, fs=64, normalize_prob=True, normalize_energy=False)(inputs, return_freq=True, return_theta=True, **kwargs)
        outputs = FreqGaussian()(outputs, fmean=fmean)
        ## Reshape so that the orientations are the innermost dimmension
        outputs = rearrange(outputs, "b h w (phase theta f) -> b h w (phase f theta)", b=b, h=h, w=w, phase=2, f=4, theta=10)
        outputs = OrientGaussian()(outputs, theta_mean=theta_mean)
        ## Recover original disposition
        outputs = rearrange(outputs, "b h w (phase f theta) -> b h w (phase theta f)", b=b, h=h, w=w, phase=2, f=4, theta=10)
        return outputs

model = Model()
variables = model.init(random.PRNGKey(42), jnp.ones(shape=(1,28,28,1)))
state, params = variables.pop("params")
